General

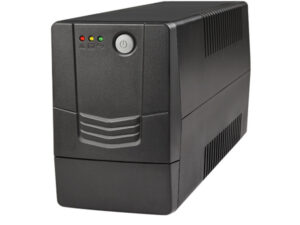

• UPS Topology: Line-interactive

Input
• Generator Compatibility: Yes
• Nominal Input Voltage (Vac): 230 +/- 10%
• Input Voltage Range (Vac): 170 ~ 290
• Input Frequency (Hz): 50 +/- 5, 60 +/- 5
• Input Frequency Detection: Auto-sensing
• Rated Input Current (A): 2.95
• Input Connector Type: AU

Output
• Capacity (VA): 650
• Capacity (Watts): 390
• On Battery Waveform: Simulated Sine Wave
• On Battery Voltage(s) (Vac): 230 +/- 10%
• On Battery Frequency (Hz): 50 +/- 1%, 60 +/- 1%
• Automatic Voltage Regulation (AVR): Single Boost, Single Buck
• Overload Protection: Fuse
• Outlet(s) – Total: 3
• Outlet Type: AU x 3
• Outlet(s) – Battery & Surge Protected: 3
• Typical Transfer Time (ms): 4

Battery
• Runtime at 60W (min): 35
• Runtime at 90W (min): 21
• Typical Recharge Time (Hours): 8
• Start On Battery: Yes
• User-replaceable: No
• Battery Type: Sealed Lead-acid

Surge Protection & Filtering
• Surge Suppression (Joules): 125
• EMI/RFI Filtration: Yes

Management & Communications
• LED Indicators: Power On , Line Mode , Battery Mode , Low Battery
• Audible Alarms: Battery Mode , Low Battery , Overload , UPS Fault

Environmental
• Operating Temperature (C): 0 ~ 40
• Operating Relative Humidity (Non-condensing) (%): 0 ~ 90
• Operating Elevation (feet/meters): 0-10,000 feet (0-3,000 meters)
• Storage Temperature (C): -20 ~ 50
• Storage Relative Humidity (Non-condensing) (%): 0 ~ 90
• Storage Elevation (feet/meters): 0-10,000 feet (0-3,000 meters)
• Online Thermal Dissipation (BTU/hr): 40
• Audible Noise at 1.5M from Surface of Unit (dBA): 40

Physical Specifications
• Form Factor: Brick
• Enclosure Construction: Plastic
• Color: Black
• Dimensions (WxHxD): 158 x 91.5 x 240 mm
• Weight: 4.1 kg
